perfection in double-pulse welding
The SPARTUS EasyMIG 227DP is a modern inverter MIG/MAG welding machine that combines high precision with intuitive operation. Thanks to its double-pulse technology, it delivers welds with TIG-like quality — a distinctive rippled finish and minimal deformation. It’s the perfect solution for workshop, production, and industrial applications where aesthetics, repeatability, and productivity matter.
MIG/MAG welding — full control, flawless results
EasyMIG 227DP supports multiple MIG/MAG modes — from classic manual, to synergic, to pulse and dual-pulse welding. This gives the operator full control over the process regardless of the material or skill level.
The built-in Easy synergic programs automatically adjust parameters to the selected wire and gas. The operator can fine-tune voltage to shape the weld and penetration depth. Double-pulse mode ensures a smooth, even bead with minimal heat distortion — ideal for aluminium and stainless steel.
The machine supports wire diameters from 0.8–1.2 mm, with a maximum welding current of 220 A and a 60% duty cycle. Additional functions — 2T/4T, Inductance control, Spool Gun, Wire Test, and polarity reversal — improve precision and comfort, and allow welding with flux-cored wire without shielding gas.
MMA and TIG Lift welding
EaEasyMIG 227DP also supports:
- MMA welding with Hot Start, Arc Force and VRD
- TIG Lift (DC) welding with soft arc ignition and adjustable current up to 220 A
This makes the machine a versatile power source for various workshop tasks.

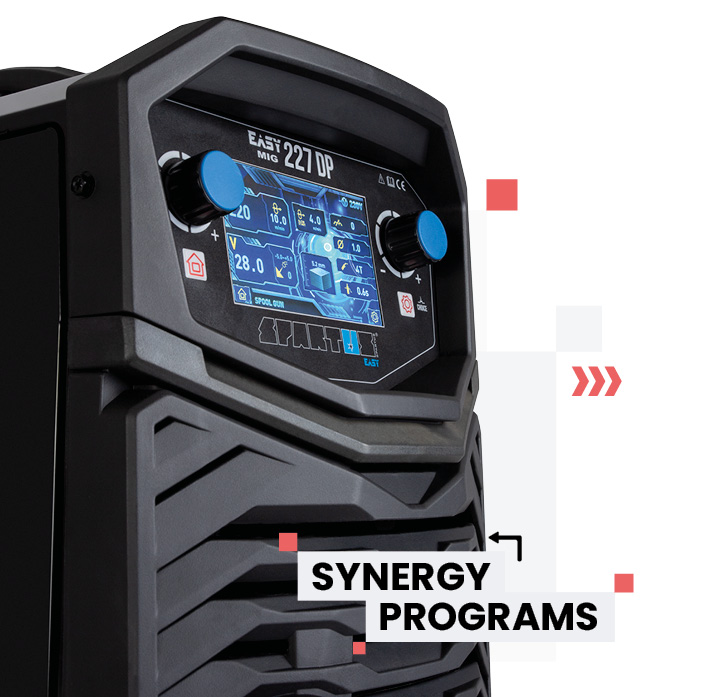

Synergic programs
SPARTUS EasyMIG 227DP features integrated synergic programs that automatically adjust the welding parameters to the selected wire and shielding gas, ensuring repeatability and optimal results.
| MATERIAL | PROCESS | SHIELDING GAS | WIRE DIAMETER |
|---|---|---|---|
| CARBON STEEL | MIG DC | 100%CO2 | 0.8 – 1.0mm |
| CARBON STEEL | MIG DC | 75%Ar + 25%CO2 mixed gas | 0.8 – 1.0mm |
| FLUX CORE | MIG DC | – | 0.8 – 1.0mm |
| CARBON STEEL | Pulse / Dual Pulse | 80%Ar+20% CO2 mixed gas | 0.8 – 1.0mm |
| STAINLESS STEEL | Pulse / Dual Pulse | 80%Ar+20% CO2 mixed gas | 0.8 – 1.0mm |
| STAINLESS STEEL | Pulse / Dual Pulse | 97,5%Ar+2,5% CO2 mixed gas | 0.8 – 1.0mm |
| CuSi | Pulse / Dual Pulse | 100% argon | 0.8 – 1.0mm |
| AlSi | Pulse / Dual Pulse | 100% argon | 1.0 – 1.2mm |
| AlMg | Pulse / Dual Pulse | 100% argon | 1.0 – 1.2mm |

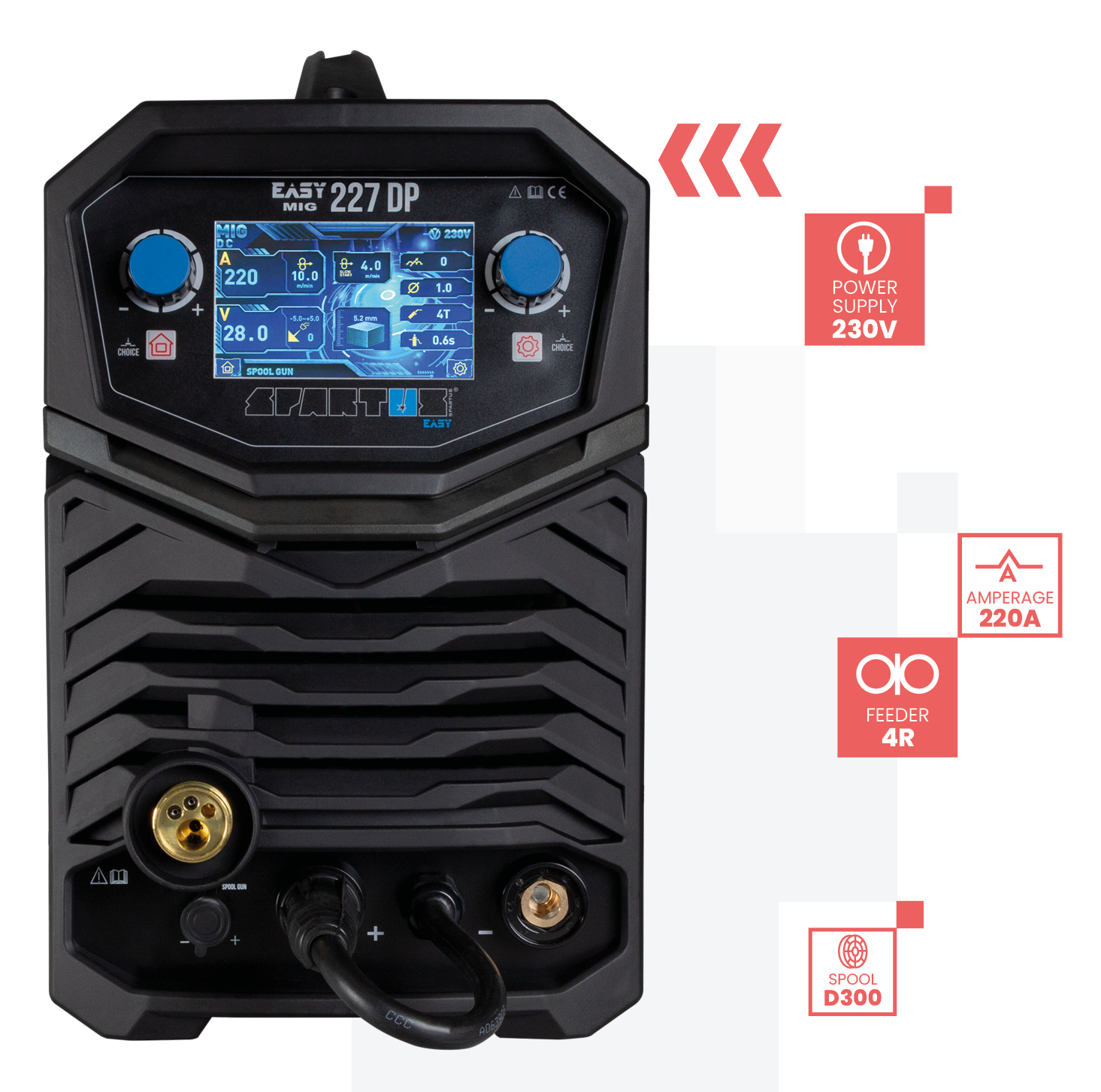

Control panel
A large LCD display shows real-time data: current, voltage, inductance, wire speed, and material thickness.
Two dials and function keys allow quick selection of welding modes (MIG/MAG, TIG, MMA) and smooth parameter adjustment.
Graphical icons indicate weld shape and recommended material thickness — extremely helpful, even for less experienced operators.
Robust construction and mobility
EasyMIG 227DP is built on IGBT inverter technology, ensuring a stable arc and high efficiency (up to 83%).
The integrated four-roller feeder guarantees consistent wire feeding.
Compact dimensions (560 × 255 × 445 mm) and weight of 19.5 kg make it easy to transport.
A cooling system with thermal protection and IP21S rating ensures reliability under heavy use.
Equipment
SPARTUS Easy machines are sold only as complete sets, including everything required to start welding.
Package equipment:
• EasyMIG 227DP
• MIG gun SPE 150 3m with a steel wire liner
• graphite liner coated
• 2x guide roller 0.8-1.0V fi30 + additionally 2x 1.0-1.2U fi30
• electrode holder
• work clamp
• gas hose
• user’s manual
SPARTUS EasyMIG 227DP is a universal, modern 230 V MIG/MAG welder with double pulse, combining precision, efficiency, and ease of use.
Perfect for steel, stainless steel, and aluminium — delivering TIG-like quality in MIG/MAG technology.
Ideal for workshops, production, and anyone who expects flawless, repeatable welds.
