power and precision with dual pulse
Modern technology, reliable construction, and full process control – SPARTUS ProMIG 335DP is a three-phase inverter welder for MIG/MAG, Lift TIG and MMA, designed for demanding industrial environments. The unit combines synergic control with dual pulse technology, ensuring exceptional weld quality even on thin materials.
MIG/MAG welding — full control over the arc
ProMIG 335DP oferuje wszystkie nowoczesne tryby spawania MIG/MAG:
ProMIG 335DP offers all modern MIG/MAG welding modes:
- Synergic MIG/MAG – automatic parameter adjustment based on wire type, diameter and shielding gas,
- Pulse and Dual Pulse – excellent heat control of the weld pool, perfect for aluminum, stainless steel and thin sheets,
- Manual mode – full freedom in adjusting wire feed speed, voltage and inductance.
Advanced supporting functions include:
- Pre Gas / Post Gas adjustment,
- Slow Feed (soft start of wire feed),
- BurnBack,
- 2T / 4T / s4T / Spot modes,
- Spool Gun support.
With high control precision, the machine maintains a stable arc and produces smooth, clean welds regardless of material — from steel to aluminum.
MMA and Lift TIG welding
ProMIG 335DP also enables MMA welding and Lift TIG welding.
For TIG, available functions include:
- Down Slope (current down-slope),
- Post Gas,
- 2T/4T mode selection,
- Gas or water cooling.
In MMA mode, Hot Start and Arc Force functions improve arc ignition and stability, especially with rutile and basic electrodes.

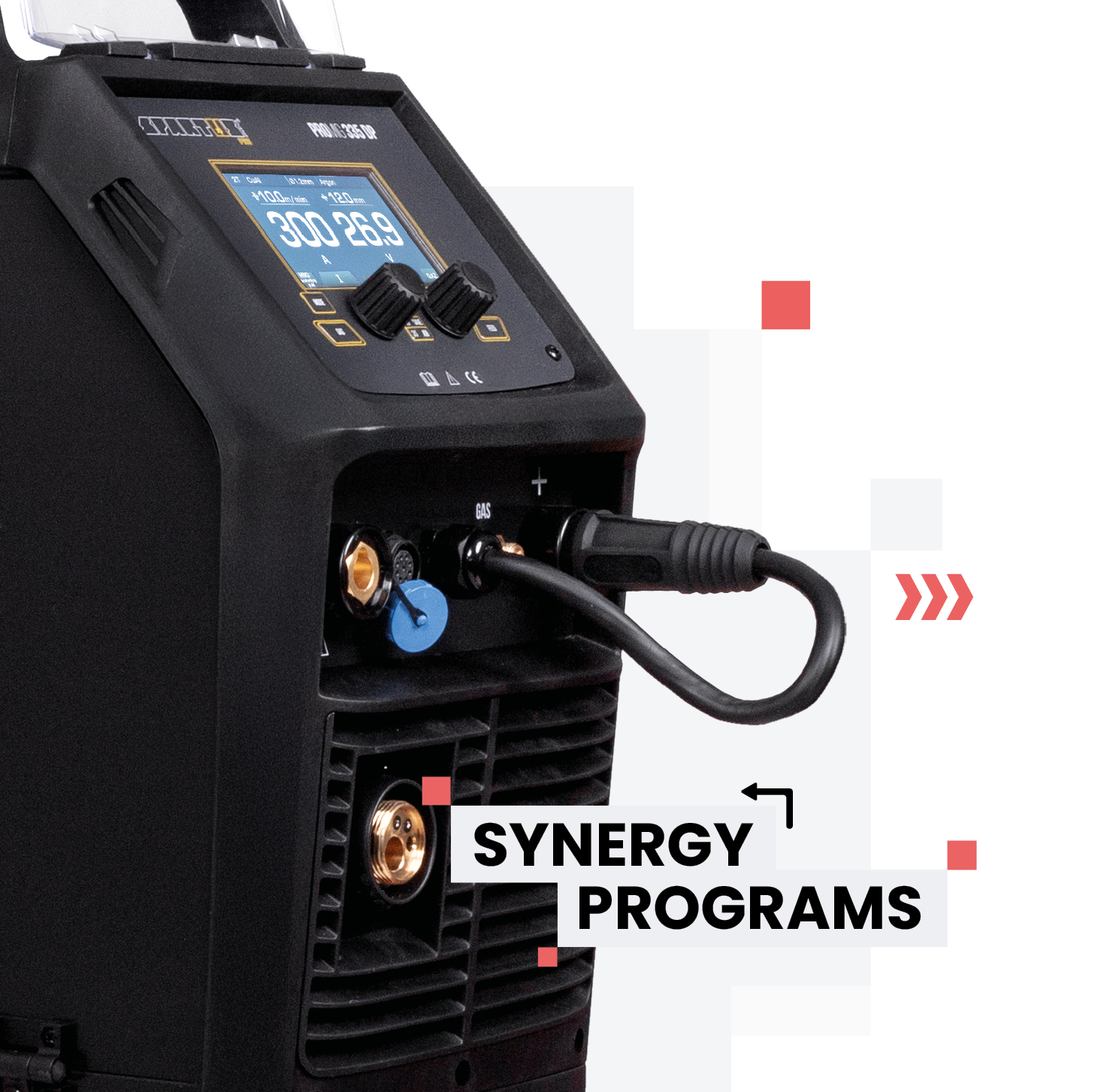

Synergic programs
SPARTUS ProMIG 335DP is equipped with integrated synergic programs that intelligently adjust welding parameters based on the selected wire and gas.
This significantly reduces setup time and ensures repeatability and optimal results in every welding cycle.
| WIRE TYPE | PROCESS | SHIELDING GAS | WIRE DIAMETER |
|---|---|---|---|
| SOLID STEEL | MIG SYNERGY | CO2 | 0.8 – 1.2mm |
| FLUX-CORED STEEL | MIG SYNERGY | CO2 | 1.0 – 1.2mm |
| SOLID STAINLESS | MIG SYNERGY | 98%Ar+2% CO2 | 1.0 – 1.2mm |
| CuSi | MIG SYNERGY | Ar100% | 1.0 – 1.2mm |
| SOLID STEEL | Pulse / Dual Pulse | 80%Ar+20% CO2 | 0.8 – 1.2mm |
| FLUX CORED STEEL | Pulse / Dual Pulse | 80%Ar+20% CO2 | 1.2mm |
| SOLID STAINLESS | Pulse / Dual Pulse | 98%Ar+2% CO2 | 1.0 – 1.2mm |
| CuSi | Pulse / Dual Pulse | Ar100% | 0.8 – 1.2mm |
| Al-Mg SOLID | Pulse / Dual Pulse | Ar100% | 1.0 – 1.2mm |
| Al-Si DRUT LITY | Pulse / Dual Pulse | Ar100% | 1.0 – 1.2mm |
| Al 99.5 SOLID | Pulse / Dual Pulse | Ar100% | 1.2mm |
| STAINLESS FLUX | Pulse / Dual Pulse | 80%Ar+20% CO2 | 1.2mm |
| CuAl | Pulse / Dual Pulse | Ar100% | 1.2mm |
Intuitive control and LCD panel
The clear, full-color LCD function panel provides quick access to all features and modes.
Function knobs and buttons allow smooth adjustment of welding parameters such as current, voltage, wire feed speed, pulse frequency and pulse width. The interface allows selection of language, wire type, gas type and cooling mode. Designed for ergonomic operation, even when wearing welding gloves.
Memory channels – fast recall of settings
The welder offers 10 memory channels, allowing quick storage and recall of commonly used parameter sets.
This greatly speeds up work during repetitive welding tasks and ensures consistent settings.
Construction – durability and mobility
SPARTUS ProMIG 335DP features a robust industrial design, with a duty cycle of 60% at 300 A.
Three-phase 3×400 V power supply, power factor cos φ = 0.9, and efficient cooling ensure reliable and stable performance.
The integrated 4-roller wire feeder ensures smooth wire feeding, while the water cooler and mobile transport cart improve usability in production environments.
The housing with IP21S protection rating and insulation class H safeguards the electronics against dust and damage.
EQUIPMENT
SPARTUS ProMIG 335DP is available as a standalone power source or in complete configurations.
Package equiped:
• ProMIG 335DP
• cooler
• driving set
• MaxCoolant – cooling liquid 5l
• 3m MIG gun SPARTUS SPP 241
• 3m electrode holder
• 3m work clamp
• gas hose
• user’s manual
Thanks to a flexible and innovative customer-oriented approach, SPARTUS Pro machines can also be configured with different torches and expanded with additional accessories, creating a set perfectly suited to the specifics of the job.
SPARTUS ProMIG 335DP is an advanced welding power source that combines industrial performance with precision and comfort. With pulse and dual pulse functions, memory channels and multi-process capability, it is ideal for production and repair applications requiring consistent, high-quality results.
