CHOOSE COMFORT WHILE WELDING — USE HERMES TABLES!

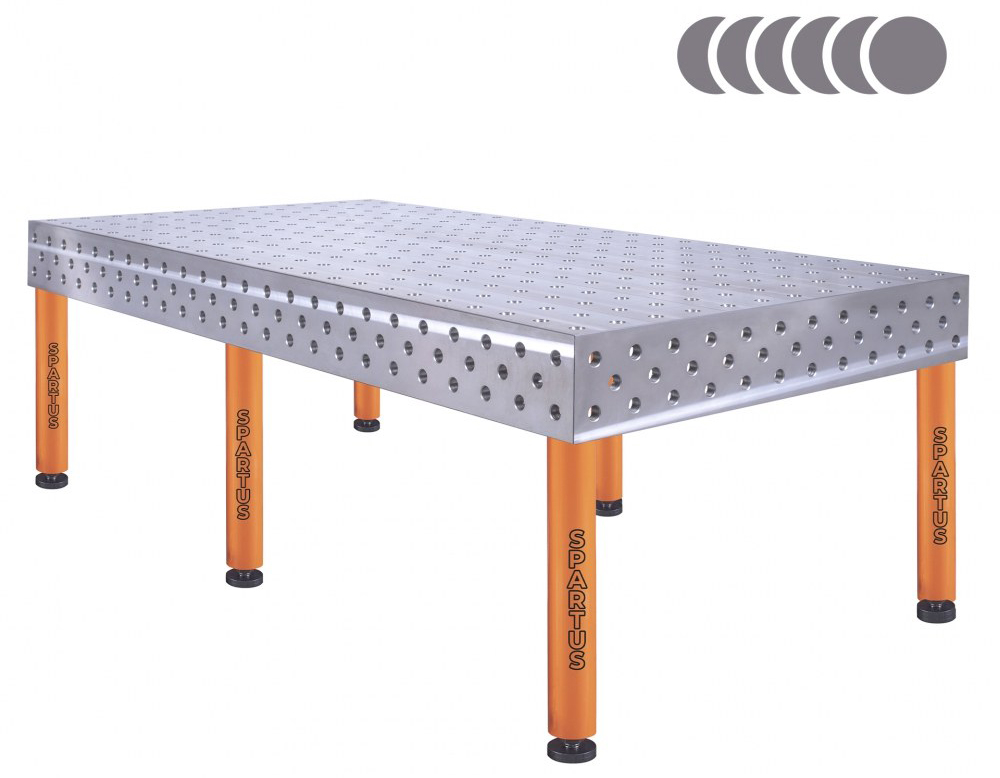

SPARTUS HERMES welding tables are durable and versatile workstations, ideal for use in a wide range of production environments. Their design has been developed with intensive industrial use in mind — combining robust construction, resistance to damage, and user comfort. Thanks to the system of mounting holes, quick and precise positioning of workpieces is possible, along with the use of a wide range of accessories. SPARTUS HERMES is an excellent solution for production facilities where flexibility, durability, and work efficiency matter most.
S355J2+N Steel Worktop – Durability in All Conditions
The worktop of the SPARTUS HERMES table is made of S355J2+N structural steel, known for its high mechanical strength and resistance to impacts, deformation, and external factors. This material performs exceptionally well in intensive welding environments — it is resistant to welding spatter and offers increased corrosion resistance. Thanks to the use of S355J2+N steel, HERMES tables maintain their properties over time, ensuring stable and safe working conditions even in the most demanding applications.
25 mm for Maximum Durability
The 25 mm thick worktop of the SPARTUS HERMES welding table provides exceptional durability and resistance to mechanical damage. Such a solid construction ensures stability even when working with heavy components and under intense loads, resulting in reliable performance in everyday use. The thick worktop also means greater table longevity and enhanced safety during welding.
Precision in Every Detail
The worktop of the SPARTUS HERMES welding table is equipped with a millimeter scale that significantly facilitates precise positioning of workpieces. Thanks to the clear markings, the user can quickly and accurately set up components, improving both efficiency and repeatability of tasks. This practical feature supports accuracy at every stage of the fabrication process.
Flexibility and Workstation Expansion
The use of 3D side panels in SPARTUS HERMES welding tables allows for easy expansion of the working surface and the connection of multiple tabletops into one cohesive system. This enables the user to adapt the workstation to the size and nature of the workpieces, enhancing both functionality and comfort. It’s an ideal solution for workshops that value modularity and expandability.
D28 System – Compatibility and Mounting Precision
SPARTUS HERMES welding tables use the D28 hole system — a grid of 28 mm diameter holes, drilled and milled with the highest precision. This design ensures full compatibility with D28 system accessories and allows for quick and accurate clamping of components in any configuration. It’s a reliable solution for those who value flexibility and precision in everyday workshop operations.
Flexible Base Configuration
SPARTUS HERMES welding tables are available with two leg variants: with a fixed foot or with a caster wheel. The fixed-foot version provides maximum stability and a secure base during intensive work, while the caster-wheel version allows for easy movement of the table within the workshop. Both options affect the final height of the table, so selecting the appropriate variant allows you to tailor the workstation to your individual needs and working conditions.
| Table Height | 450mm | 600mm | 700mm | 800mm | 870mm |
| Leg Height with Foot | 200mm | 350mm | 450mm | 550mm | 620mm |
| Table Height | 520mm | 670mm | 770mm | 870mm | 940mm |
| Leg Height with Caster Wheel | 200mm | 350mm | 450mm | 550mm | 620mm |
Various Worktop Sizes – Customize the Table to Your Needs
SPARTUS HERMES welding tables are available in several practical size variants, allowing for a perfect fit to the specific requirements and dimensions of the workstation. The available worktop sizes are: 1500×1000 mm, 2000×1000 mm, 2400×1200 mm, and 3000×1500 mm. This variety enables optimal use of workshop space and ensures comfortable work regardless of the size of the welded components.
Technical Specifications
| Size of the work surface | 1500x1000x200mm | 2000x1000x200mm | 2400x1200x200mm | 3000x1500x200mm |
| Made | welded | welded | welded | welded |
| Material | S355J2+N steel acc. to EN 10025-2 | S355J2+N steel acc. to EN 10025-2 | S355J2+N steel acc. to EN 10025-2 | S355J2+N steel acc. to EN 10025-2 |
| Table top thickness | 25mm | 25mm | 25mm | 25mm |
| Table horizontal precision | 0.1 /1000mm | 0.1 /1000mm | 0.1 /1000mm | 0.1 /1000mm |
| Table vertical precision | 0.1 /200mm | 0.1 /200mm | 0.1 /200mm | 0.1 /200mm |
| Standard | D28 (drilled and milled holes 28mm diameter) | D28 (drilled and milled holes 28mm diameter) | D28 (drilled and milled holes 28mm diameter) | D28 (drilled and milled holes 28mm diameter) |
| Carrying capacity | 2000kg /leg | 2000kg /leg | 2000kg /leg | 2000kg /leg |
| Number of legs | 4pcs | 4pcs | 6pcs | 6pcs |
| Table top weight | 535kg | 720kg | 960kg | 1500kg |
